Paddy Cleaner/De-stoner

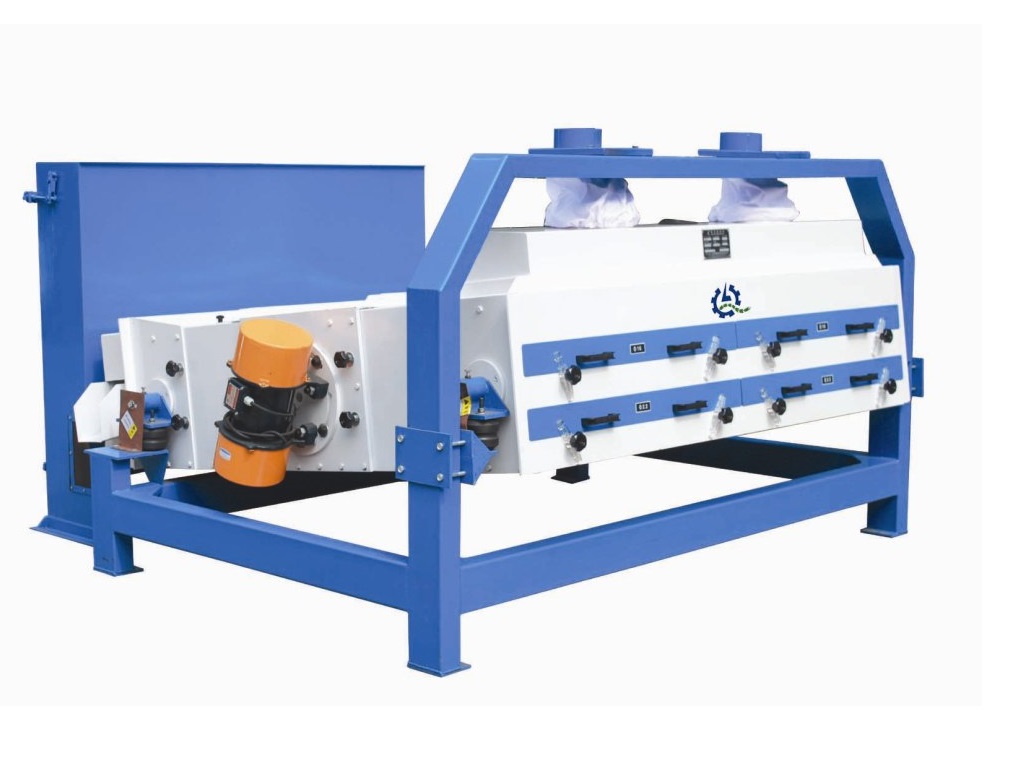

NAME：TQLZ series Vibrating paddy cleaner
MODEL：TQLZ
SERIES：TQLZ Series Vibrating Paddy Cleaner
This machine is the second cleaner in the mill which can remove the middle and light impurity
The two vibratory motors make the self-balance to-and- fro vibration.
The vertical suction channel can remove the light impurities and the immature paddy.
It has the advantages such as high impurity-removing efficiency, smooth operation, stable performance and
so on.
Main Technical Parameters
|
Model |
TQLZ100 |
TQLZ125 |
TQLZ150 |
TQLZ180 |
|
Capacity(t/h) |
6~12 |
8~13 |
10~15 |
15~20 |
|
Power(kw) |
0.37×2 |
0.55×2 |
||
|
Air volume(m3/h ) |
3600 |
4500 |
5400 |
6800 |
|
Exterior size(L×W×H,mm) |
3100×1500×1600 |
3100×1750×1600 |
3100×2000×1600 |
3100×2300×1600 |
