Paddy Cleaner/De-stoner

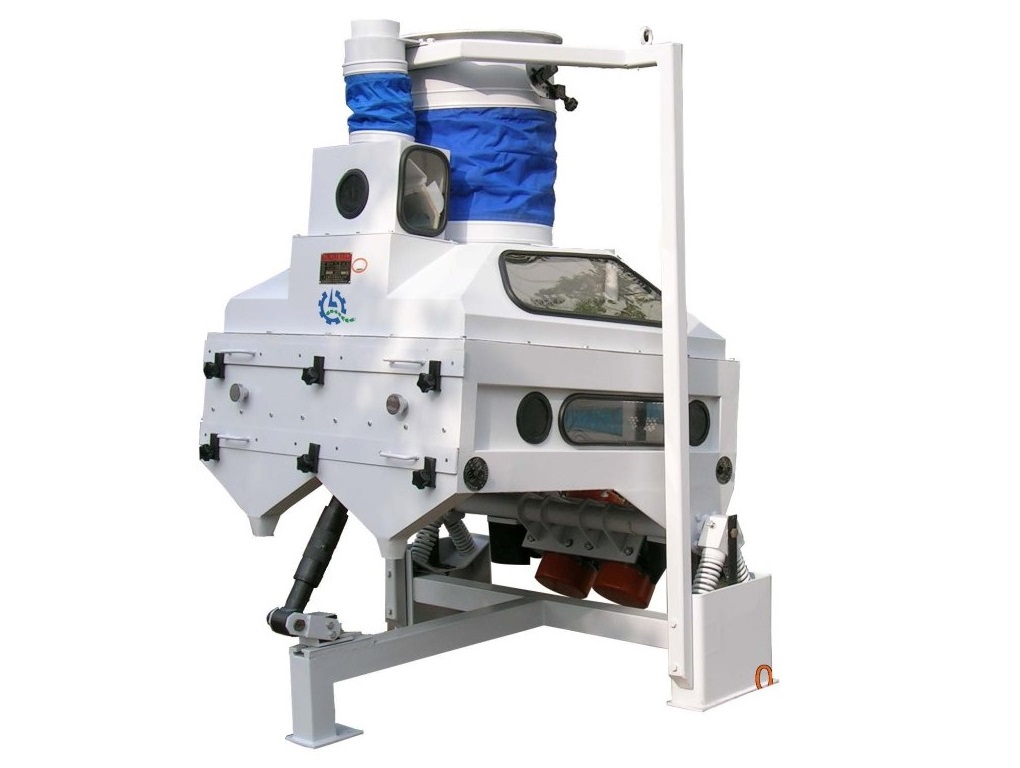

NAME:TQSF Series Paddy Destoner
MODEL:TQSF
SERIES:TQSF Series Paddy Cleaner
This machine can remove the the stoner which has the similar size with the paddy. By introducing overseas
advanced techniques and modern manufacturing technology, TQSF suction type gravity stoner is proven to
be perfect stone-removing equipment for modern food processing plant. Use vibrating motor, with stable
running, compact construction, steady mechanical performance, small required area.
Use double-deck stone-removing construction, with better effect, less grain content in stone.
With full closed construction, there is no dust spread. Air pressure and air volume is adjustable, and equipped
with negative pressure indicator.
Equipped with illuminating system, including longer service life daylight lamp, easy to observe
Main Technical Parameters
Model |
TQSF63x2 |
TQSF80x2 |
TQSF100x2 |
TQSF125x2 |
Capacity(t/h) |
3~6 |
6~9 |
8~12 |
11~17 |
Power(kw) |
0.25×2 |
0.37×2 |
||
Air volume(m3/h ) |
5000 |
6000 |
8000 |
12000 |
Exterior size(L×W×H,mm) |
1350×860×1800 |
1350×1050×1800 |
1400×1250×1920 |
1460×1500×1940 |
