Rice Color Sorter

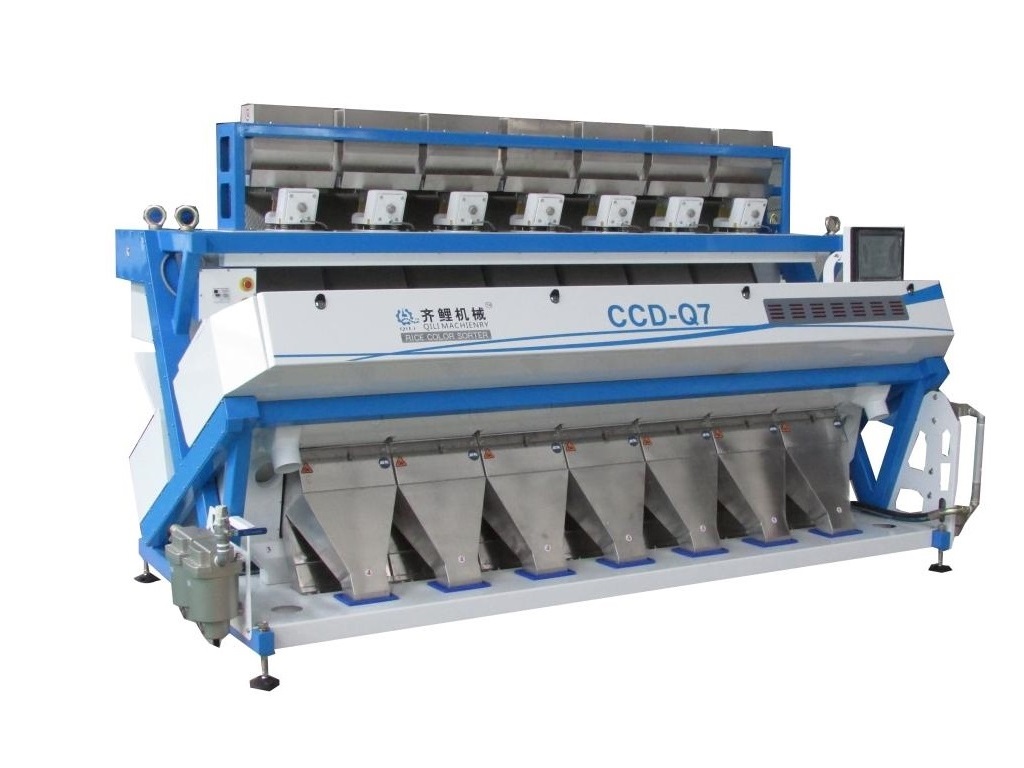

NAME：Q Series CCD Color Sorter
MODEL：Q Series
SERIES：Q Series CCD Color Sorter
High speed line scan 2048/5000 pixels CCD sensor
High speed resolution ratio NIKON CCD camera: Super clear imaging, resolution ratio, color reduction well
,no distortion
International honor brand pro-face touch screen: Swift reaction ,high sensitivity ,reliable, easy operation
High luminance LED resource: High luminance, low power consumption ,long life, reliable
High frequency solenoid valve: Special for color sorting, high frequency ,low power consumption ,
high sorting accuracy
The advanced operation system :Special for small speck , light yellow ,chalky, discolor
Main Technical Parameters
|
Model |
Output (t/h) |
Sorting Accuracy(%) |
Optimized Carryover |
Power (kw) |
Voltage |
Dimension (L×W×H)mm |
Weight (kg) |
|
Q3 |
2～3.5 |
〉99.95 |
〉1：0.12 |
1.5 |
220V/50-60HZ |
1200×11462×1756 |
700 |
|
Q4 |
2.5～6.5 |
〉99.95 |
〉1：0.10 |
1.5 |
220V/50-60HZ |
2100×1491×1860 |
950 |
|
Q5 |
4～10 |
〉99.95 |
〉1：0.10 |
2.0 |
220V/50-60HZ |
2100×1491×1860 |
1050 |
|
Q7 |
6～12 |
〉99.95 |
〉1：0.10 |
3.0 |
220V/50-60HZ |
2970×1560×1794 |
1550 |
